    Gas Detectors Long Wave Narrow Band Infrared Detector Infrared Small Detectors 25um

    Gas Detectors, Long Wave Narrow Band Cooled Detector,Type II superlattice mid-wave infrared small detector

    Medium Wave Detector

    YZT-TCQ-05 Medium Wave Cooled Detectors


    Product Features

    Small size116 × 63 × 65 mm
    Light Weight≤ 455 g
    High ReliabilityMTTF ≥15000 h
    Low Power12W@23℃
    Specially image algorithm
    F-number optionalF1.5/F2/F4

    Application Areas

    It is used for observation and detection of mobile vehicles and can be loaded on vehicle-mounted platforms, airborne platforms, coastal observation platforms, etc. It can observe high and low temperatures of organisms and can be used for medical detection, fire warning, etc.


    Technical Parameters

    DetectorDetector TypeMid-wave infrared small detector
    Resolution640 × 512
    Pixel size15μm × 15μm
    Response band3. 7 μm ~ 4.8 μm
    Effective pixel rate≥ 99.7 %
    Refrigeration time at room temperature (23°C)< 6 mins
    Refrigeration methodLinear Stirling Refrigerator
    F-number4
    Service life (MTTF)15000h
    Video OutputFrame rate2 5Hz / 50Hz / 100Hz/ External sync
    Analog OutputPAL / NTSC
    Digital OutputCameralink (14-bit raw data or 8-bit video data)
    Control performanceImage AdjustmentContrast, brightness, image polarity, shutter correction, background correction, detail enhancement, electronic magnification
    Cross-sectionshow/ Blanking
    Integration timeContinuously adjustable ( 6 ~ 20ms )
    Power supplyInput voltageDC 12V ± 1V
    Power consumptionCooling 2 4 W / Steady 1 2 W
    Environmental parametersOperating temperature-40℃ ~ +60℃
    Storage temperature-50℃ ~ +70℃

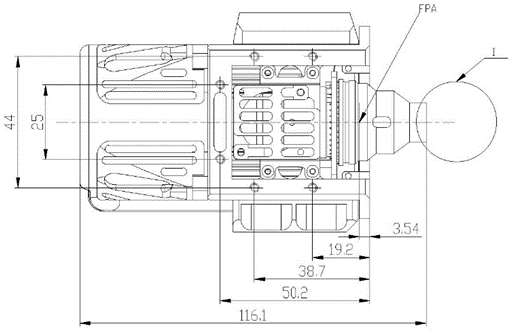

    Physical propertiessize11 6 mm × 6 3 mm × 6 5 mm (without lens)
    weight≤ 455 g (without lens)
