    Gas Infrared Small Detectors Long Wave Narrow Band Detectors 30um Pixel Size

    Ask Lasest Price
    Brand Name : FOVA
    Model Number : YZT-TCQ-04
    Certification : CE;FCC
    Payment Terms : T/T
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-15work days
    • Product Details
    • Company Profile

    Gas Infrared Small Detectors Long Wave Narrow Band Detectors 30um Pixel Size

    Gas Detectors, Long Wave Narrow Band Cooled Detector,Type II superlattice mid-wave infrared small detector

    Gas Detectors

    YZT-TCQ-04 Long Wave Narrow Band Cooled Detector


    Product Features

    Small size109.5 × 70.5 × 58.5 mm
    Light Weight≤ 505 g
    High ReliabilityMTTF ≥15000 h
    Low Power10W@23℃
    Specially image algorithm
    High detection accuracy:

    Application Areas

    Detecting YZT-TCQ-04 gas leakage is often used for power system monitoring and preventing air pollution.

    Technical Parameters

    DetectorDetector TypeMid-wave infrared small detector
    Resolution320 × 256
    Pixel size30 μm × 30 μm
    Response band10.3 μm ~ 10.8 μm
    Effective pixel rate≥ 99%
    Refrigeration time at room temperature (23°C)< 7mins
    Refrigeration methodLinear Stirling Refrigerator
    F-number1. 2
    Service life (MTTF)15000h
    Video OutputFrame rate2 5Hz / 50Hz / 100Hz/ External sync
    Analog OutputPAL / NTSC
    Digital OutputCameralink (14-bit raw data or 8-bit video data)
    Control performanceImage AdjustmentContrast, brightness, image polarity, shutter correction, background correction, detail enhancement, electronic magnification
    Cross-sectionshow/ Blanking
    Integration timeContinuously adjustable
    power supplyInput voltageDC 12V ± 1V
    Power consumptionCooling 2 4 W / Steady 1 0 W
    Environmental parametersOperating temperature-40℃ ~ +60℃
    Storage temperature-50℃ ~ +70℃

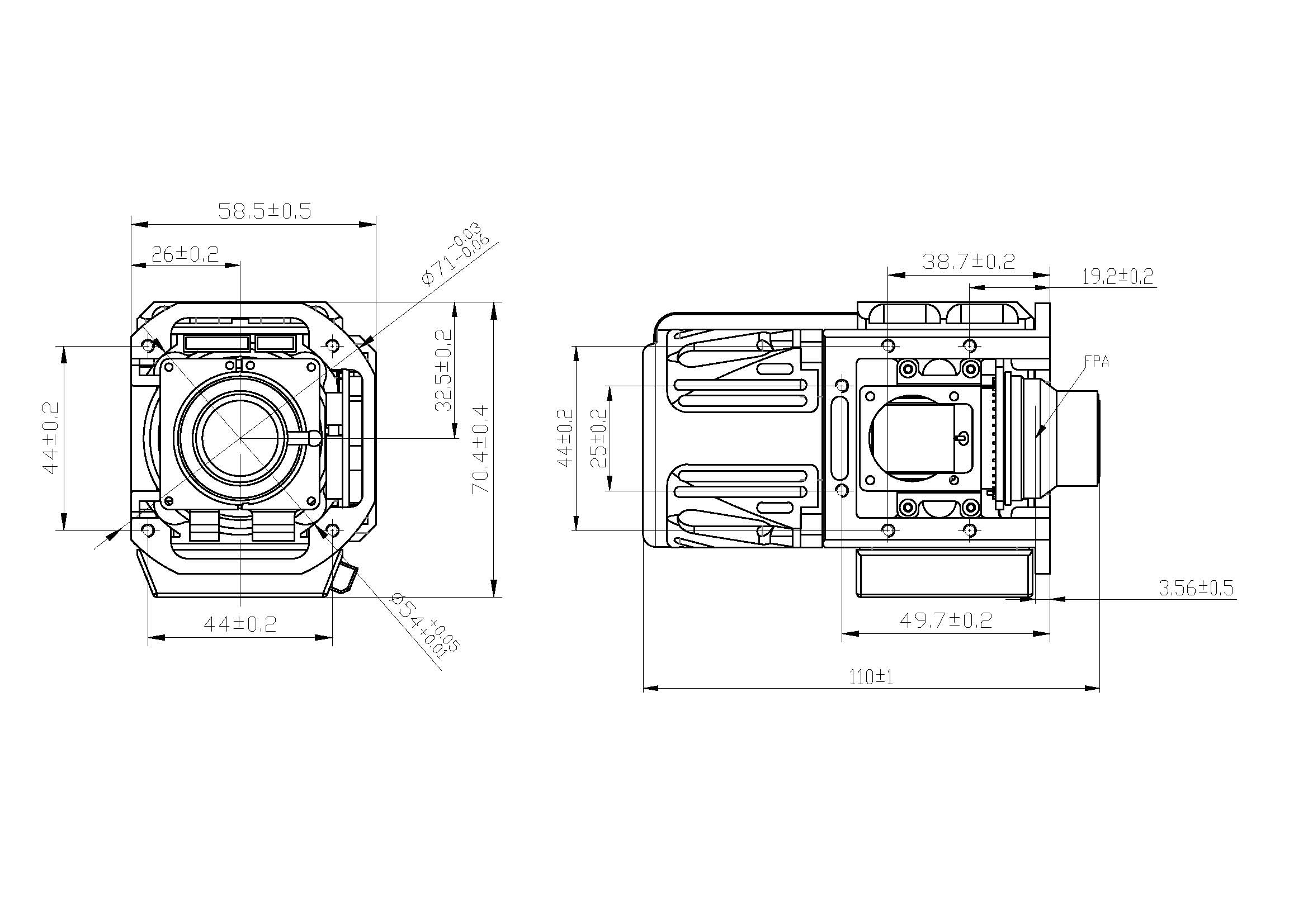

    Physical propertiesSize109.5 mm × 70.5 mm × 58.5 mm (without lens)
    weight≤ 5.05 g (without lens)
